Schedule Lens · Live · V0.19+

See the schedule you've been asked to defend.

A time-scaled Gantt with hierarchical WBS, validator stripes, click-to-drill diagnostics, and overlays for every condition that makes a schedule not safe to risk-load.

See it on your XER →
Schedule Lens on a real XER — WBS tree, time-scaled Gantt, side panel
Live capture · 5,869 activities · 4.3 sec renderWBS tree, critical-path bars, validator stripes, click-to-drill diagnostic panel — visible at once.
Anatomy of a Lens view

Every overlay, labelled.

Annotated Schedule Lens view
WBS treeCritical-path barsInsight panelSearch · zoom · filter
5,869
activities rendered in 4.3 seconds (representative UK infrastructure scheme)
10,748
relationships drawn at the same time
75
per-activity check stripes — colour-coded by framework
4
frameworks visible at once: SOMA · DCMA · CIOB · Acumen
Built for planners

The overlays you need. Where you need them.

Hierarchical WBS tree

Collapsible sidebar with descriptive labels ("KM — Project Key Dates & Summary Activities"), not just codes. Expand or filter to any depth.

Validator stripes

Per-activity stripes coloured by framework. See at a glance which activities fail SOMA's checks, DCMA's, CIOB's or Acumen's.

Critical-path bars

Distinct fill for critical activities. Milestone diamonds for zero-duration tasks. Lock icons for MSO/MFO constraints.

Open-end markers

Activities with no predecessor or successor are flagged inline. Dangling outline. Negative-lag connectors highlighted.

Out-of-sequence indicators

Activities progressing despite incomplete predecessors are tagged. Reportable, fixable, traceable.

Hatch overlay for non‑risk‑loadable

Summaries, milestones, and locked activities are shown with a hatch fill. They never enter the Monte Carlo by accident.

Click-to-drill

Every diagnostic, every trace, one click away.

Click any bar. A slide-in panel shows the activity record, clickable predecessor/successor lists, and the full diagnostic trace — every check that activity failed, every framework that flagged it.

  • Diagnostic trace — failed checks listed with rule ID, severity, and source field.
  • Pin issues into an agenda as you go and work through the list with the planner in one sitting.
  • Share‑link URL state — share a deep link with filters, WBS branch and pinned issues preserved.
  • This is the tab the analyst and planner sit beside each other to use. The whole UI is designed for that conversation.

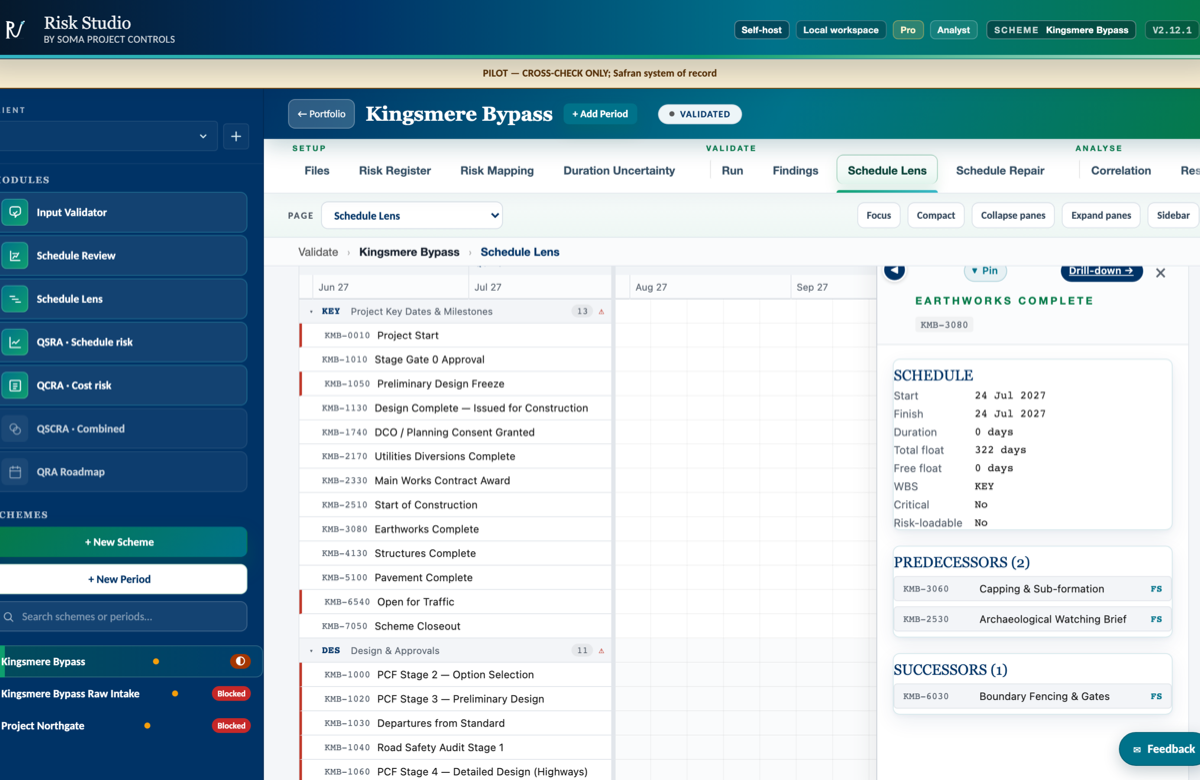

Diagnostic trace shown alongside Schedule Lens
Click-to-drill · diagnostic traceEvery failed check listed with rule ID, severity and source field. Add to agenda or jump to the activity.
Standalone or integrated

Reach Schedule Lens however you work.

Inside Risk Studio

Available as a tab on every scheme. Loads the framework's per-check results automatically. Pre-populated WBS tree from the active XER.

Standalone upload

Drop an XER without setting up a scheme. Diagnostic-only mode for quick spot-checks, second opinions, or partner schedules.

Open a real schedule with us.

On a recent opening render of a 5,800+ activity reference scheme we found 84 open ends and 17 negative lags. Bring your XER.
